PRODUCT PARAMETERS

Brand: WEIHAI YUTUO Fishing Tackle Co.,Ltd.

Product: Electronic carp fishing bite alarms

Size: 25×16×6.5cm

Weight: 400g

Product includes: 1Receiver 4 Transmitters

Transmitter Lights: Red/Yellow/Blue/Green

Remarks:

There are 4 Transmitters In A Box, The Quantity Can Be Increased Or Decreased According TO

The Needs Of Customers, And The Color Can Also Be Exchanged.

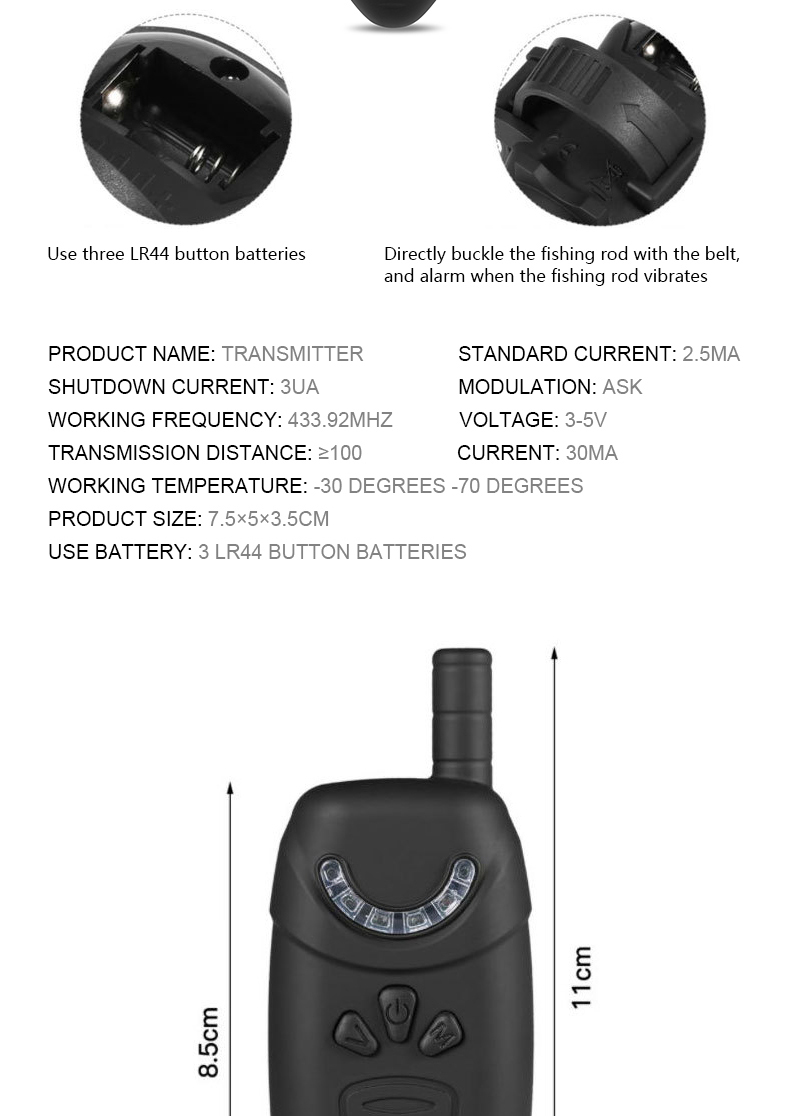

LAUNCHER

Product Name: TTransmitter

Standard Current: 2.5MA

Shutdown Current: 3UA

Modulation: ASK

Working Frequency: 433.92MHZ

Voltage: 3-5V

Transmission Distance: ≥100

Current: 30MA

Working Temperature: -30 DEGREES -70 DEGREES

Product Size: 7.5×5×3.5cm

Use Battery: 3 LR44 BUTTON BATTERIES

RECEIVER

Product Name: Receiver

Standard Current: 0.15MA

Shutdown Current: 6UA

Modulation: ASK

Working Frequency: 433.92MHZ

Voltage: 9V

Receive Sensitivity: -110DBM

Current: 30MA

Working Temperature: -30 Degrees -70 Degrees

Product Size: 11×5×3cm

Use Battery: 3 AA Batteries
